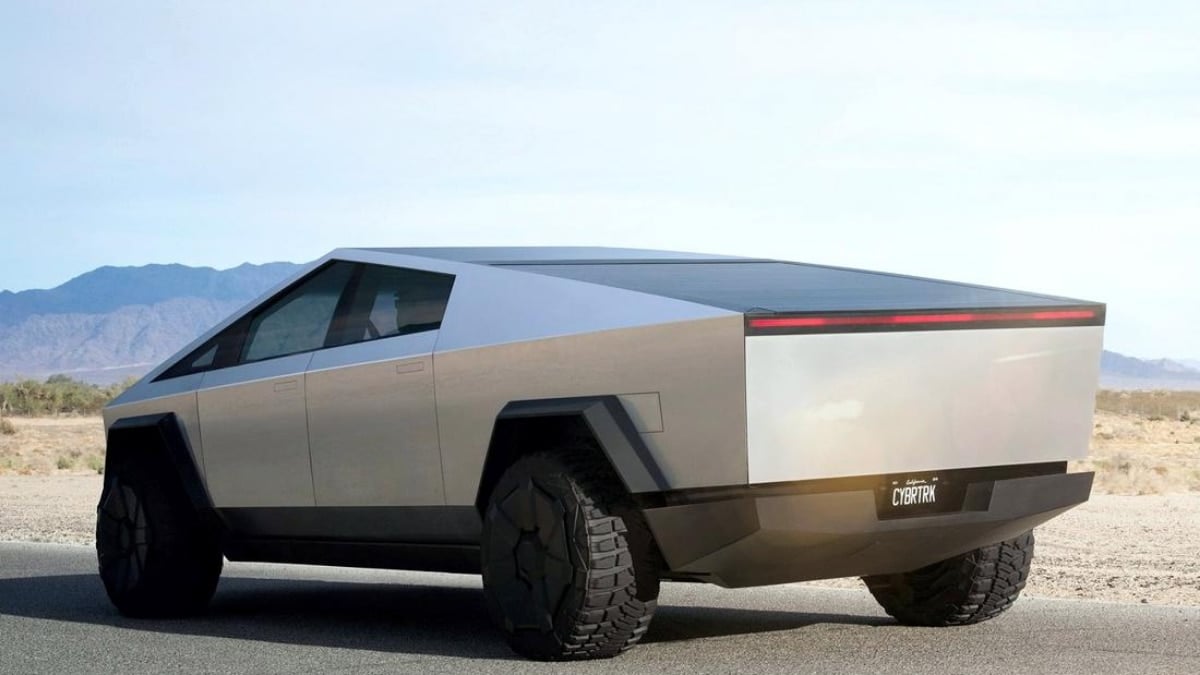

Tesla Cybertruck: Wireless Charging, An Interesting Option

Inductive wireless charging would provide ease and convenience of charging for the upcoming Tesla Cybertruck, without the requirement of any charging cables. It would really be a an important feature, and the company probably has already thought about the pros and cons of implementing it, even if there is no official statement or any twit from Elon Musk that would hint anything in that direction.
Advertisement

The technology basically uses two electromagnetically linked coils that exchange power at high frequency. The primary coil is placed on the garage, driveway or road surface and linked to the electricity network while the secondary coil is placed on the vehicle and charges the battery. Wireless charging systems are nowadays commercially available for various electric vehicles.

A broader extension of wireless charging would be on-road charging where inductive charge pads are placed along the roads so that Teslas can wirelessly charge while driving. It’s a technology that can dramatically reduce the cost not only for the Cybertruck, but for all other Tesla models, and by the way, for electric cars in general, as they would need a smaller battery and move this cost to the charging infrastructure.

Tesla Wireless

The technology works as follows: an inductively coupled contactless power transfer (IPT) system is placed, capable of efficiently delivering power from a stationary primary source to a movable or stationary secondary source, over a relatively large air gap. Although the conductive charger has a lot of advantages, such as simplicity and high efficiency, the inductive charger is easy to use and is suitable for all-weather conditions. This is because there is no direct electrical contact between the vehicle and the charger preventing the possibility of a shock or an electrical arc.

In case of stationary/static charging, Tesla could upgrade parking lots (or existing charger – supercharger facilities) to charge EVs with the comfort of not plugging in any charging cables. Such systems can be buried or flush-mount, thereby not affecting the façade of a city and being safe from vandalism and unfavorable weather conditions.

Tesla Model S

The main drawbacks of this charger are the high investment cost and the relatively higher losses when compared to conductive charging. My guess is Tesla will be able to work it out eventually, if they decide it is a reasonable cost-effective implementation; the Cybertruck would be even more cutting edge and attractive this way.

Another very important aspect of inductive charging systems Tesla would need to take into account is the health risk associated with the exposure of individuals to radiation. The leakage fields that permeate the space around the charge-pad can impact both the health of a living entity in close proximity. It can also result in unwanted heating of foreign objects that are closeby.

Model S Wireless

Different regulating bodies have published standards for limiting exposure – ICNIRP (International Commission on Non-Ionizing Radiation Protection), IEEE etc. There are different Z classes where Z is the air gap (distance) between the primary and secondary coils: Z1 (100-150 mm), Z2 (140-210 mm) and Z3 (170-250mm) and different power classes - 3.7, 7.7, 11, 22 kW as per SAE J2954 standard.

Various systems have been developed over the last decade aimed at charging both personal and public transport vehicles. These prototypes range from 2kW to 200 kW of power delivered at frequencies around 40-100 kHz with overall efficiency from AC mains to DC battery, ranging from 80 to 95% . Charging distances are 50mm-400mm for production cars and public transport vehicles.

As for the Cybertruck, Tesla would need to guide the magnetic fields in order to reduce the losses, a requirement for these systems to be viable, as they have to be mounted close to the ferrous vehicle body. A third trend would be to integrate the different powertrain components and controllers in the vehicle.

Tesla Wireless

There are many practical examples of stationary inductive charging, including bus based wireless electric vehicle charging systems (WEVC). Such systems have helped in reducing the weight of on-board batteries and have improved efficiency. Some examples are: Conductix- Wamplfler’s WEVC in buses at Torino, Geneo and s’Hertogenbosch in the Netherlands. Efficiencies of more than 90% were reported at 60, 120 or 180 kW.

WAVE IPT, a spin-off from Utah State University, has been working on 50 kW IPT systems achieving more than 90 % efficiency. They are expecting to install IPT systems with 250 kW charging. In South Korea, OLEV, a spin-off from Korean Advanced Institute of Science and Technology (KAIST), developed a third generation of wireless power transfer with a power transfer efficiency of 83% at a 20-cm air gap.

Cybetruck

As we can see, there many different approaches to the technology, many different ways to implement and in my opinion, it would be a really good feature to be included in the upcoming Tesla Cybertruck, scheduled for 2023 (hopefully!). What do you think? Please share your comments below.

Nico Caballero is the VP of Finance of Cogency Power, specializing in solar energy. He also holds a Diploma in Electric Cars from Delft University of Technology in the Netherlands, and enjoys doing research about Tesla and EV batteries. He can be reached at @NicoTorqueNews on Twitter. Nico covers Tesla and electric vehicle latest happenings at Torque News.
