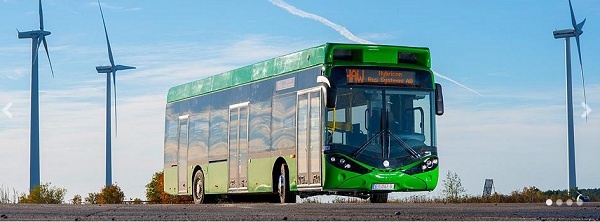

Arctic Whisper Electric Bus
Luke Ottaway's picture

Arctic Whisper electric bus charges in 6 minutes, has highly appropriate name

Electric vehicles typically take hours to recharge, but there is one brute-force tactic to get around this problem: lots and lots of power. Sweden’s Arctic Whisper is an all-electric bus that can replenish its battery in 6 minutes, and the maker says even that’s not good enough.

There are two ways to make all-electric buses: with enormous batteries that yield long range or average-sized batteries that yield average range but can charge very, very fast. The former is the path that BYD has chosen, with their 324 kWh Iron-Phosphate battery achieving 155 miles of range. The latter is the direction taken by Greenville-based Proterra and their “infinite-range” electric bus capable of recharge times of less than 10 minutes.

Hybricon Bus Systems, the Swedish manufacturer of the marvelously named Arctic Whisper electric city bus, also has opted for ultra-fast recharging. Charged EVs reported that the current prototype bus uses a charging system known as Opbrid Bůsbaar (adapted from electric train systems) that dumps electricity into the 100 kWh battery at 400 V DC and a mind-blowing 625 A, for a total charging power of 250 kW. This is double the power at which Tesla’s Supercharger network operates.

The current system is capable of charging at 300 kW and yet only produces a temperature rise of about 10 degrees C at the junction between the pantograph and the overhead charging rail. Hybricon is not satisfied, however, and neither are fleet operators; the company wants to reduce the current 6-minute charge time to just 2-3 minutes by increasing the charge rate to 650 and 950 kW.

“The local bus operator only has a few minutes to charge at the ends of the route, so we developed this bus to satisfy this demand,” pointed out Hybricon CEO Jonas Hansson. He elaborated on the bus’s unique requirements for operating near the Arctic Circle, which include a robust electric heater and a unique battery design optimized for cold-weather optimization. The battery chemistry is also ideally suited for accepting high charging rates.

For urban bus operators, the shorter the charging time the better. Proterra’s current system is capable of recharging in about 8 minutes, which is sufficient for the needs of many bus routes that begin and end at a central terminal where the bus may be recharged. Shorter charge times, however, reduce the need for additional buses and allow more flexibility in route planning. As a result, fast-charge bus manufacturers are striving to lower their times into the 2-3 minute range.

Electric buses are a proven way to save fleet operators enormous amounts of money in fuel costs while eliminating tailpipe emissions. Their huge batteries and expensive charging equipment can be prohibitive up-front costs for many cities, but those able to make the investment are rewarded. Hybricon and their Arctic Whisper seek to improve the technology even further and demonstrate that recharging time doesn’t have to be an obstacle for electric vehicles.
