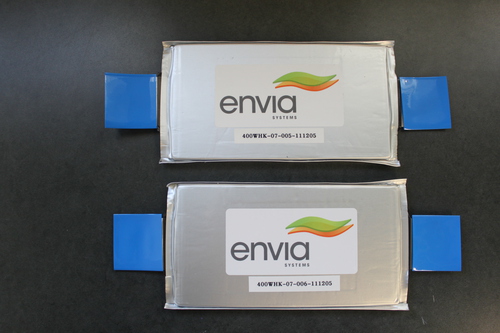

Envia's 45 amp-hour lithium-ion battery cells

Envia Systems battery breakthrough for affordable 300 mile range electric cars

Envia Systems is due to announce a dramatically improved lithium-ion battery design, with over twice the energy density and 1/4th the cost of current lithium-ion batteries, at the ARPA-E conference this week. Could lead to the long range affordable electric car of our dreams?

Lithium battery startup company Envia Systems plans to announce tomorrow, at the ARPA-E conference, development of a high energy density lithium battery (400 watt-hours per kilogram) which could be the tipping point enabling long range affordable electric cars. Long range electric cars have been possible for quite awhile, Solectria built one in the 1990's, and Tesla Motors has been selling the Roadster and will soon be selling the Model S with battery packs sufficient for 200-300 miles of all electric driving range. What Envia brings to this is higher energy density and lower cost, a combination which would make for an affordable, long range, electric car with a 300-mile range and a price around $25,000 to $30,000.

The company is a Silicon Valley startup founded in 2007, headquartered in Newark CA, and with a prototyping and manufacturing plant in Jiaxing China. The company received a $4 million ARPA-E award in the High Energy Density Lithium Batteries program, as well as significant amounts of private investment from GM Ventures and others.

Envia's technology is a new cathode design for lithium-Ion batteries which the company calls the High Capacity Manganese Rich (HCMR) cathode. It's claimed the design has excellent stability, long lifetime in charge cycles, and a high per cell voltage. The company has also designed anode and electrolyte materials required to build complete batteries. Batteries have a positive terminal (the anode), a negative terminal (the cathode), and an electrolyte mix between the two. Electrons move between the anode and cathode through the electrolyte.

Envia's cathode design is due in part to technology the company licensed a year ago from Argonne National Labs.

The result is a battery that stores 400 watt-hours of electricity per kilogram, compared to the 100-200 watt-hours/kilogram for todays lithium-ion batteries. Envia says its battery cell costs could be as low as $125 per kilowatt-hour. It's difficult to get accurate prices automakers pay for batteries, but it's thought to be in the neighborhood of $5-600 per kilowatt-hour. Together this means Envia has achieved a breakthrough of over twice the energy density of todays batteries, at 1/4 or less the cost.

If Envia's battery development works out, and is commercialized, the dramatically higher energy density would mean a dramatic jump in electric car range without sacrificing vehicle weight, size or cargo capacity. It would also represent a dramatic decrease in battery pack cost, letting automakers reduce vehicle prices. However it's not quite as dramatic a jump in energy density as the 1000 watt-hours/kilogram announced hoped for by PolyPlus.

Envia's cells have undergone Verification & Validation testing by the Naval Service Warfare Center, Crane Division (NSWC Crane) under the ARPA-E program. According to a summary released on Envia's website, the NSWC was able to verify the cells have a capacity of 46 amp-hours and an energy density of 400 watt-hours/Kilogram. By comparison the NCR18650A manufactured by Panasonic has 3.1 amp-hours capacity, and an energy density of 245 watt-hours/kilogram. While Tesla Motors has sourced 18650 size cells from Panasonic for use in the Model S, that company has stated Panasonic designed a custom chemistry solely for use by Tesla.

“Gone are the days of relying on ancient consumer batteries for automobiles and stifling this revolution by making expensive electric cars,” says Envia CEO Atul Kapadia. This is a not-so-subtle reference to Tesla Motors which famously relies on "laptop cells" in the 18650 format to power the Roadster, Model S and Model X. Tesla representatives have described this as a strategic move to tap into the R&D into lithium ion cells for consumer electronics. At the same time Tesla's strategy has not allowed them to reduce vehicle prices into a range we could call "affordable".

A year ago, GM Ventures invested $7 million dollars in Envia Systems, as part of a $17 million round of investment. As part of that agreement, GM secured the right to use Envia's cathode materials "for future GM electrically driven vehicles." At that time Jon Lauckner, president of GM Ventures, said "Skeptics have suggested it would probably be many years before lithium-ion batteries with significantly lower cost and higher capability are available, potentially limiting sales of electric vehicles for the foreseeable future. In fact, our announcement today demonstrates that major improvements are already on the horizon."

Envia is at a prototype phase and foresees it taking at least three years before commercial production.

The companies business model is to not go into the battery manufacturing business itself, but instead to license the technology out to other manufacturers. Envia's agreement with GM should make it easier to forge licensing agreements with battery cell manufacturers.

"In an industry where energy density tends to increase five percent a year, our achievement of more than doubling state-of-art energy density and lowering cost by half is a giant step towards realizing Envia's mission of mass market affordability of a 300-mile electric vehicle," says Kapadia. Every so often battery energy density takes a dramatic leap like this. The jump from lead-acid to Nickel-Metal-Hydride was one such jump, and the jump to lithium-ion was another.

Comments

The energy density number from an automotive perspective depends on power, usable energy, cycle life and calendar life in large format cells. The 400Wh/kg for Envia’s cells represents a 2.5x improvement over an automotive grade cell. While it is impressive to hear higher energy density numbers, it has to be related to cost and performance in automotive. Envia has built 45Ah cells that have cycled greater than 400 cycles at 80% DoD. We are going through qualification cycles with automotive OEMs around the world.
What is the power density (W/kg)?
I think you dropped a decimal point: "capacity of 46 amp-hours and an energy density of 400 watt-hours/Kilogram. By comparison the NCR18650A manufactured by Panasonic has 3.1 amp-hours capacity, " That would be 4.6. And Panasonic's current batteries for Tesla are 3.8, with 4.6 in development, or SLT.
