GM and Nasa developing Robo-Glove, expect factory floor use

General Motors Company (NYSE: GM) and NASA are jointly developing a robotic glove called Robo-glove that auto workers and astronauts can wear to help do their respective jobs better while potentially reducing the risk of repetitive stress injuries.

More robot tech is indeed coming to the factory floor in the form of special gloves called the Human Grasp Assist device. According to the GM news release, the Human Grasp Assist device is also known internally in both organizations as the K-glove or Robo-Glove. The product resulted from GM and NASA’s Robonaut 2 (R2) project, which launched the first human-like robot into space in 2011. R2 is a permanent resident of the International Space Station.

The timing of this news release seems so coincidental. As I was switching stations on my satellite TV, I saw an astronaut on the space station floating past and around R2, and confirm he (or she) was there.

Yes, space technology has always made its way eventually into our lives; and this one is no different. Think back to hand-held calculators, for example, the first of its kind in my early days of engineering that replaced that old clunky Fridon machines.

The Robo-Glove started when engineers, researchers and scientists from GM and NASA began collaborating on R2 in 2007. One of the design requirements was for the robot to operate tools designed for humans, alongside astronauts in outer space and factory workers on Earth. The team achieved an unprecedented level of hand dexterity on R2 by using leading-edge sensors, actuators and tendons comparable to the nerves, muscles and tendons in a human hand.

Research shows that continuously gripping a tool can cause fatigue in hand muscles within a few minutes. Initial testing of the Robo-Glove indicates the wearer can hold a grip longer and more comfortably. This would help the auto plants where humn fatigue due to repetitive tasks can induce carpal tunnel syndrome, for example; and that results in extras medical costs.

“When fully developed, the Robo-Glove has the potential to reduce the amount of force that an auto worker would need to exert when operating a tool for an extended time or with repetitive motions,” said Dana Komin, GM’s manufacturing engineering director, Global Automation Strategy and Execution. “In so doing, it is expected to reduce the risk of repetitive stress injury.”

For example, an astronaut working in a pressurized suit outside the space station or an assembly operator in a factory might need to use 15-20 pounds of force to hold a tool during an operation but with the robotic glove only five-to-10 pounds of force might need to be applied.

“The prototype glove offers my space suit team a promising opportunity to explore new ideas, and challenges our traditional thinking of what extravehicular activity hand dexterity could be,” said Trish Petete, division chief, Crew and Thermal Systems Division, NASA Johnson Space Center.

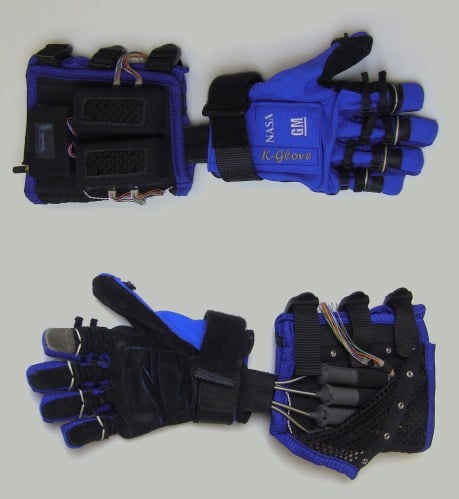

Inspired by the finger actuation system of R2, actuators are embedded into the upper portion of the glove to provide grasping support to human fingers. The pressure sensors, similar to the sensors that give R2 its sense of touch are incorporated into the fingertips of the glove to detect when the user is grasping a tool. When the user grasps the tool, the synthetic tendons automatically retract, pulling the fingers into a gripping position and holding them there until the sensor is released.

For the record, GM and NASA have submitted 46 patent applications for R2, including 21 for R2’s hand and four for the Robo-Glove alone.

The first prototype of the glove was completed in March 2011 with a second generation arriving three months later. The fabric for the glove was produced by Oceaneering Space Systems, the same company that provided R2’s “skin.”

The current prototypes weigh about two pounds and include the control electronics, actuators and a small display for programming and diagnostics. An off-the-shelf lithium-ion power-tool battery with a belt-clip is used to power the system. A third-generation prototype that will use repackaged components to reduce the size and weight of the system is nearing completion.

“We are continuously looking for ways to improve safety and productivity on the shop floor,” Komin said. “Our goal is to bring this technology to the shop floor in the near future.”

[Photo Source: media.gm.com]
